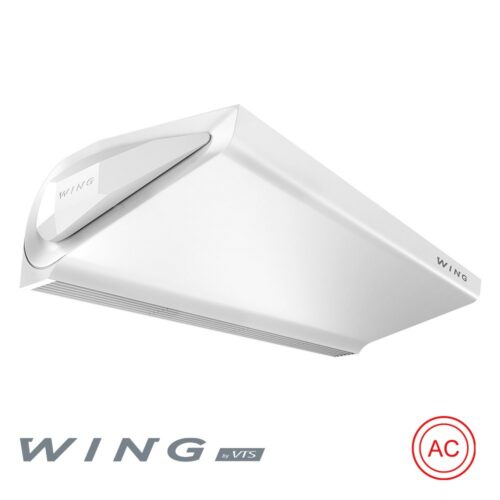

Air curtain WING E200 AC with 3-speed fan, color anthracite gray (RAL 7016)
Air curtain WING E200 AC
It is equipped with a high power heater. It ensures safe operation without overloading the fan. The asymmetrical distribution of the heating helps to adjust the curtain to the client’s needs.
894.76 € VAT included
Main advantages of WING air curtains
- The side cap, shaped like a diamond – not only protects the engine inlet, the cooling system, but also performs a visual function for a more beautiful and attractive appearance.
- The low-temperature heater ensures safe operation without overloading the fan. The asymmetrical distribution of the heating ensures the best adaptation of the air curtain to the individual requirements of the customers.
- Modern engine and fan designs save up to 60% of energy compared to conventional solutions.
- Double coating (galvanization + powder coating) – provides long-term protection against corrosion and consistent aesthetic qualities.
- Due to its optimized construction, cleaning the air curtain is convenient and does not require disassembly of any part. This guarantees high hygiene of the appliance and hassle-free operation.
The WING air curtains perfectly blend with the design of the room
Specifications
| Water heating | Electric heating | No heating | ||||||||
| Model | WING W100 | WING W150 | WING W200 | WING E100 | WING E150 | WING E200 | WING C100 | WING C150 | WING C200 | |
| AC | AC | AC | AC | AC | AC | AC | AC | AC | ||
| maximum door length (when installing 1 curtain) |
m | 1 | 1,5 | 2 | 1 | 1,5 | 2 | 1 | 1,5 | 2 |
| maximum door height (with horizontal installation of the curtain)** | m | 3,7 | 3,7 | 4 | ||||||
| maximum air flow rate *** | m3/h | 1850 | 3100 | 4400 | 1850 | 3150 | 4500 | 1950 | 3200 | 4600 |
| heating range * | kW | 4-17 | 10-32 | 17-47 | 2/6 or 4/6 | 4/12 or 8/12 | 6/15 or 9/15 | – | ||
| maximum fluid temperature | °C | 95 | – | – | ||||||
| maximum working pressure | MPa | 1,6 | – | – | ||||||
| volume of water | dm3 | 1,6 | 2,6 | 3,6 | – | – | ||||
| heat exchanger rows | pcs | 2 | – | – | ||||||
| power supply voltage | V/ph/Hz | ~ 230/1/50 | ~230/1/50 for 2kW ~ 400/3/50 for 2/4/6kW | ~400/3/50 | ~230/1/50 | |||||
| power of heaters | kW | – | 2 and 4 | 4 and 8 | 6 and 9 | – | ||||
| working current | A | – | 3/6/ max 9 | 6/11,3/ max 17,3 | 8,5/12,9/ max 21,4 | – | ||||
| fan power (AC motor) |
kW | 0,235 | 0,375 | 0,58 | 0,235 | 0,375 | 0,58 | 0,235 | 0,375 | 0,58 |
| operating current (AC motor) | A | 1,2 | 1,7 | 2,6 | 1,2 | 1,7 | 2,6 | 1,2 | 1,7 | 2,6 |
| weight (without water, AC motor) | kg | 23 | 32 | 39 | 23,5 | 32,5 | 41,5 | 20,5 | 27,5 | 34,5 |
| protection class | IP | IP 20 | ||||||||
Note:
*possible configuration with choice of control: WING E100 2/6 kW or 4/6 kW, for WING E150 4/12kW or 8/12kW, for WING E200 6/15 kW or 9/15 kW
** Air flow rate depends on fan speed
*** measured at 3 m. distance from the curtain mounted horizontally on a wall
Special brackets and fixing points allow the curtain to be installed immediately.
