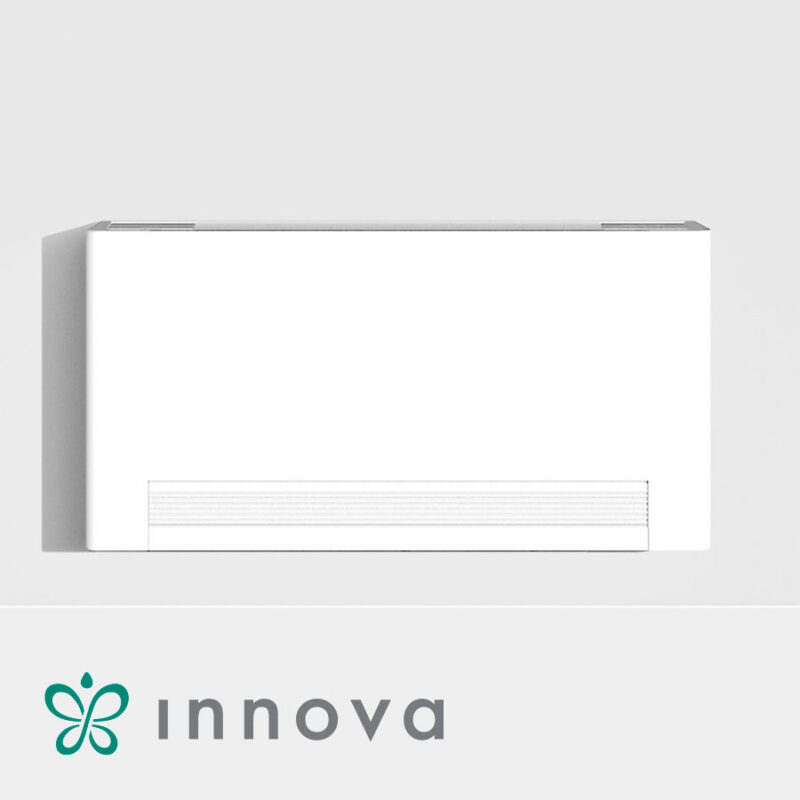

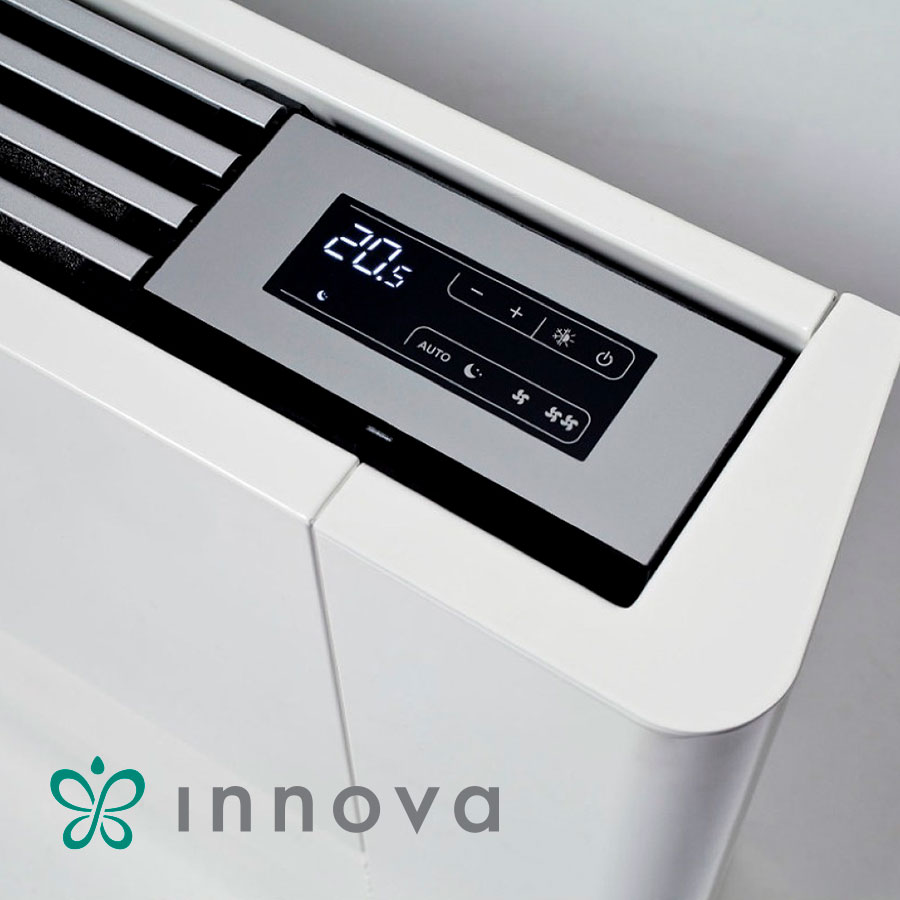

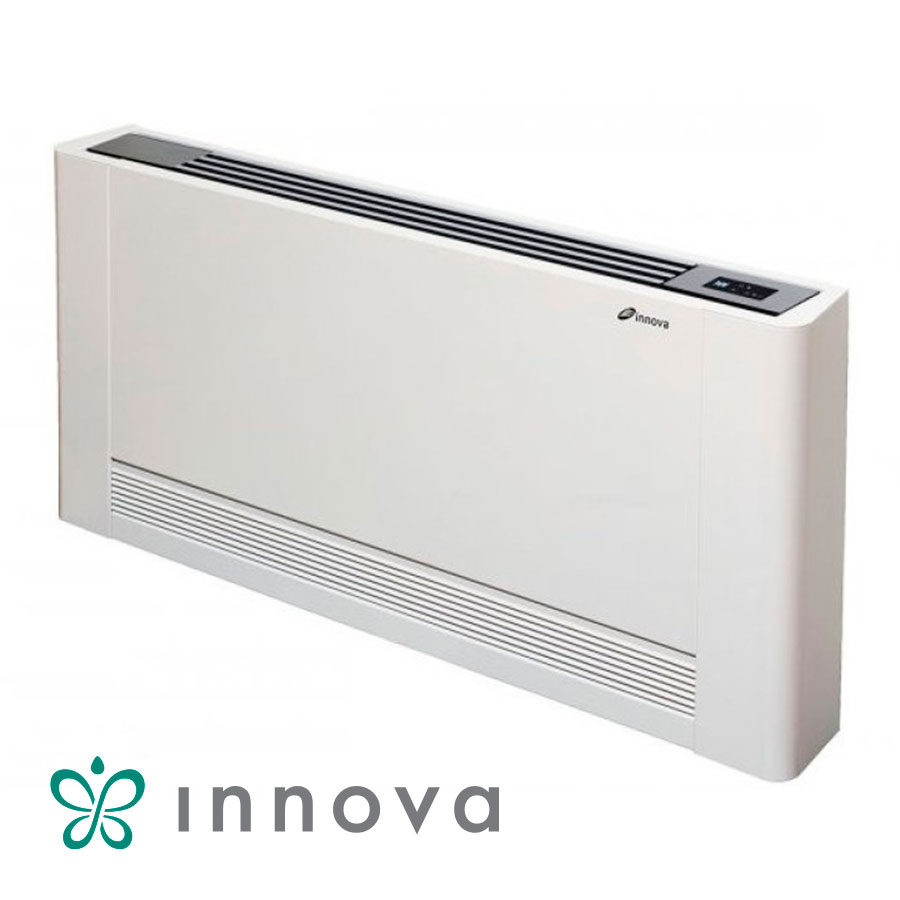

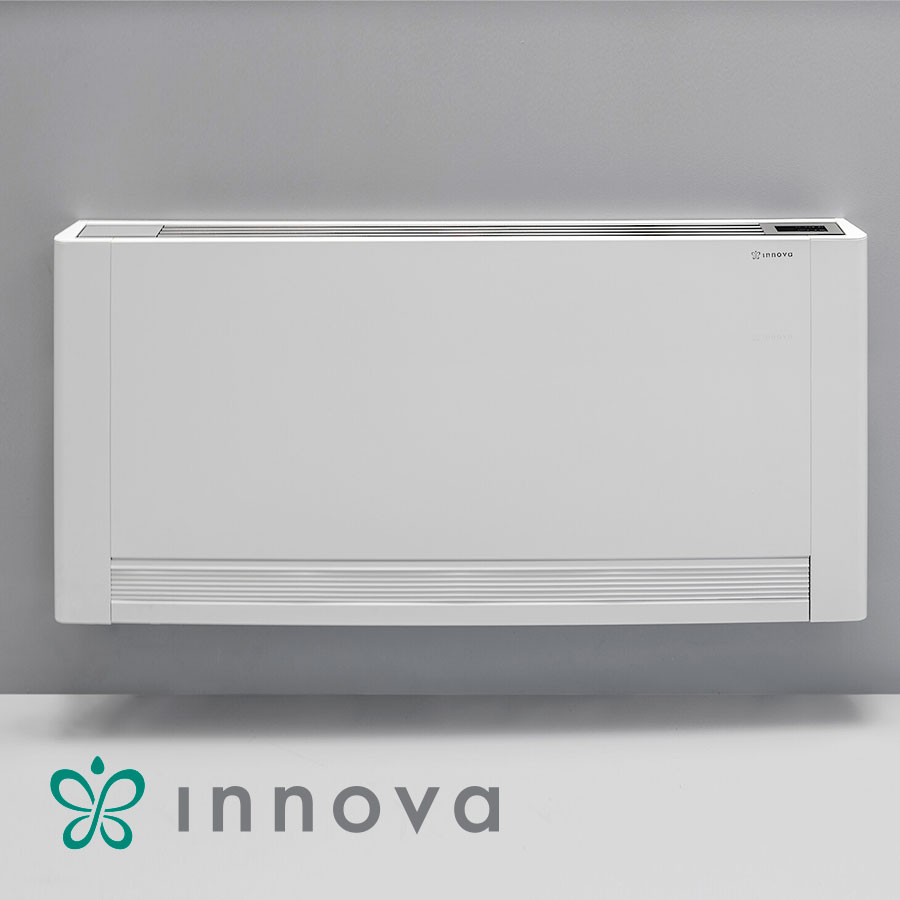

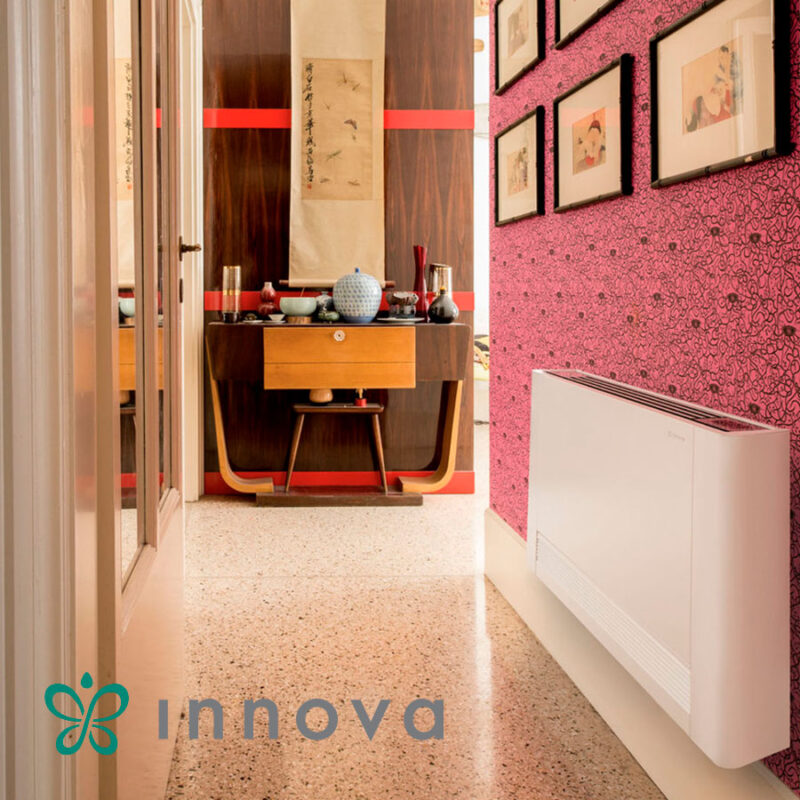

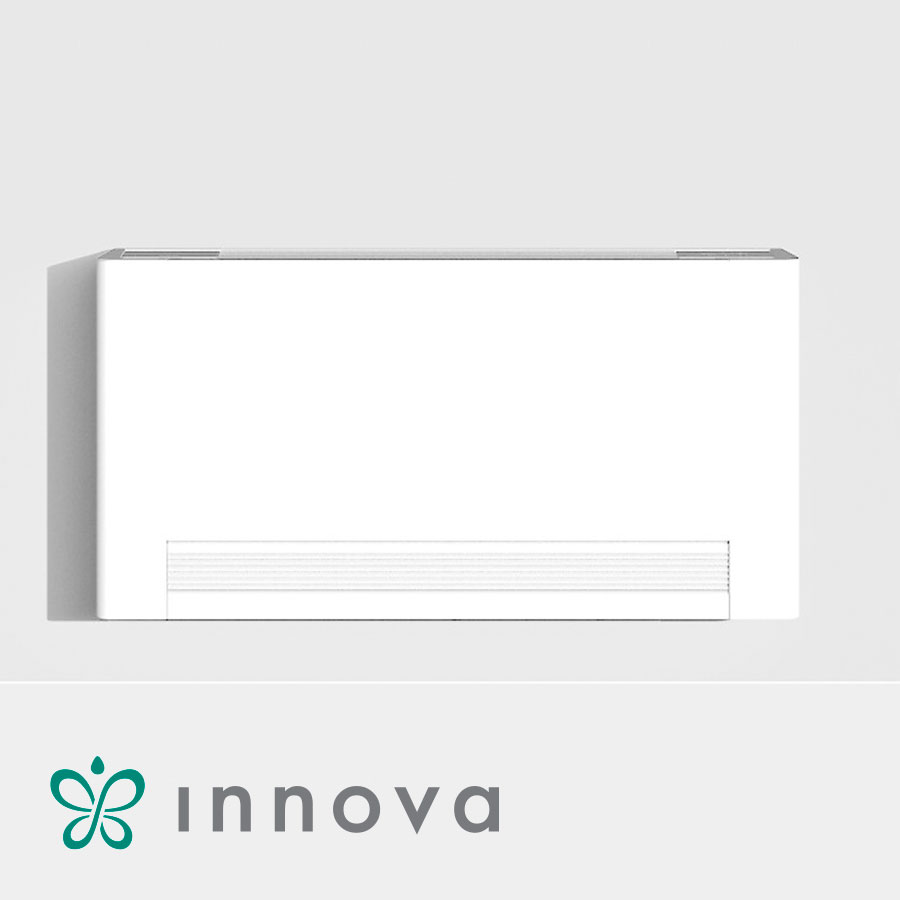

Innova Airleaf RS 400 fan coil with radiant front panel + modulating control ECA644II
Fan coil Airleaf RS – designer fan coil with DC inverter tangential fan with asymmetrical blades, depth of only 12.9 cm. and radiant front panel. It is ideal for installation in rooms where there is a requirement for quiet and noiseless operation of the convector. Complete with modulating control ECA644II.
Manufacturer – Innova, Italy
Innova Airleaf RS fan coil with radiant front panel, main advantages:
The DC-Inverter fan coil units AirLeaf are an all-in-one solution for heating, cooling and dehumidification. They allow a high degree of energy savings as they can be connected to low-temperature sources such as heat pumps, condensing boilers and systems with built-in solar collectors.
Innova Airleaf RS combines heating by standard forced convection with fan and radiant heating with its innovative front panel, which provides optimal comfort. Thanks to this exclusive system, the set temperature is maintained without the use of the main fan, absolutely silently and efficiently. The RS series uses microfans with very low internal speed, low energy consumption and minimal noise levels. The heat from the heat exchanger is transferred to the inner surface of the front panel, thus heating it and radiating heat. In summer, the microfans are deactivated to avoid the formation of condensation on the front panel of the fan coil. This exclusive patented heating system allows the set temperature to be maintained silently and without air currents in the room.
In heating mode, the fan coil units AirLeaf create an efficient natural convection heating effect (similar to the radiators), which significantly reduces the need to activate their ventilation. Their attractive design and slim body (only 12.9 cm) allow them to fit into any interior.
Technical data
| Model | RS 200 | RS 400 | RS 600 | RS 800 | RS 1000 | ||
| A | Total cooling capacity | W | 910 | 2120 | 2810 | 3300 | 3710 |
| Noticeable cooling power | W | 730 | 1720 | 2110 | 2710 | 2900 | |
| Water flow | L/h | 157 | 365 | 483 | 568 | 638 | |
| Pressure drop | kPa | 12.1 | 8.2 | 17.1 | 18 | 21.2 | |
| B | Heating power (50°C) | W | 1090 | 2350 | 3190 | 4100 | 4860 |
| Water flow rate (50°C) | L/h | 143 | 303 | 456 | 574 | 654 | |
| Pressure drop (50°C) | kPa | 5.7 | 6.6 | 16.3 | 14 | 18.3 | |
| Heating power without fan (50°C) | W | 320 | 380 | 460 | 550 | 660 | |
| C | Heating power (70°C) | W | 1890 | 3990 | 5470 | 6980 | 8300 |
| Water flow rate (70°C) | L/h | 162 | 343 | 471 | 600 | 714 | |
| Pressure drop (70°C) | kPa | 6.7 | 7.6 | 16.1 | 14 | 19.8 | |
| Heating power without fan (70°C) | W | 540 | 670 | 780 | 920 | 1080 | |
| Capacity heat exchanger | L | 0.47 | 0.8 | 1.13 | 1.46 | 1.8 | |
| Maximum working pressure | bar | 10 | 10 | 10 | 10 | 10 | |
| Pipe diameter | inch | 3/4″ Eurokonus | |||||
| D | Maximum air flow rate | m3/h | 146 | 294 | 438 | 567 | 663 |
| Minimum air flow rate | m3/h | 49 | 118 | 180 | 247 | 262 | |
| Power supply | V/ph/Hz | 230/1/50 | 230/1/50 | 230/1/50 | 230/1/50 | 230/1/50 | |
| Maximum current | A | 0.11 | 0.16 | 0.18 | 0.26 | 0.28 | |
| Maximum power consumption | W | 11 | 19 | 20 | 29 | 33 | |
| E | Sound pressure (max.) | dB(A) | 41 | 42 | 44 | 46 | 47 |
| Sound pressure (min.) | dB(A) | 24 | 25 | 26 | 26 | 28 | |
| Width | mm | 735 | 935 | 1135 | 1335 | 1535 | |
| Height | mm | 579 | 579 | 579 | 579 | 579 | |
| Depth | mm | 129 | 129 | 129 | 129 | 129 | |
| Weight (net) | kg | 17 | 20 | 23 | 26 | 29 | |
