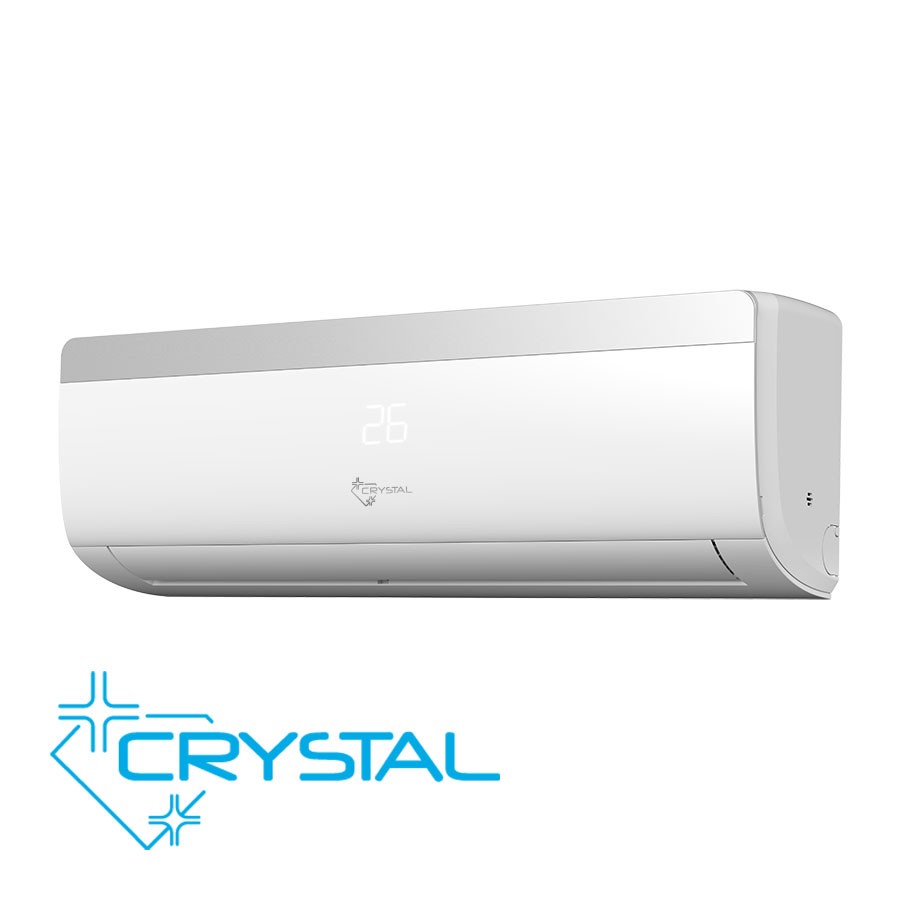

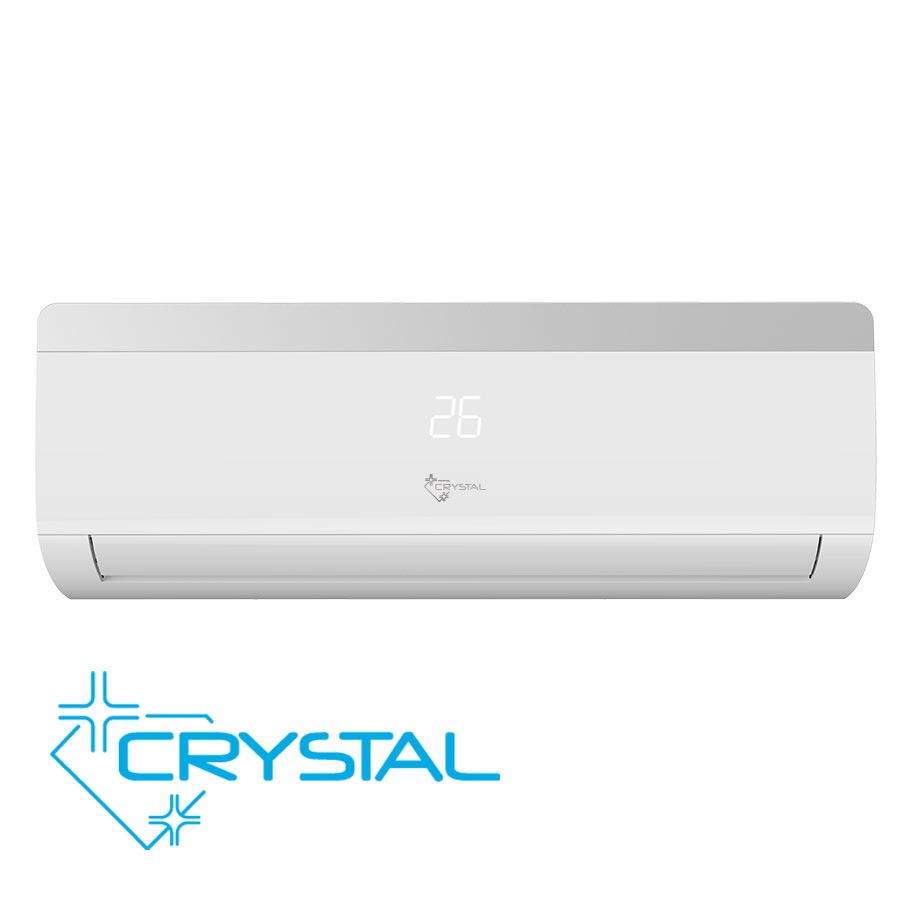

Inverter air conditioner Crystal 24S-2A, wall mounted
The main advantages of the Crystal Air Conditioner are the super quiet operation up to 19 dB, the smooth adjustment of the engine in 99 steps, the anti-corrosion protection for the heat exchanger, the included filters in the Health package and the latest I FEEL function for maintaining a preset temperature.
1 170.86 € VAT included

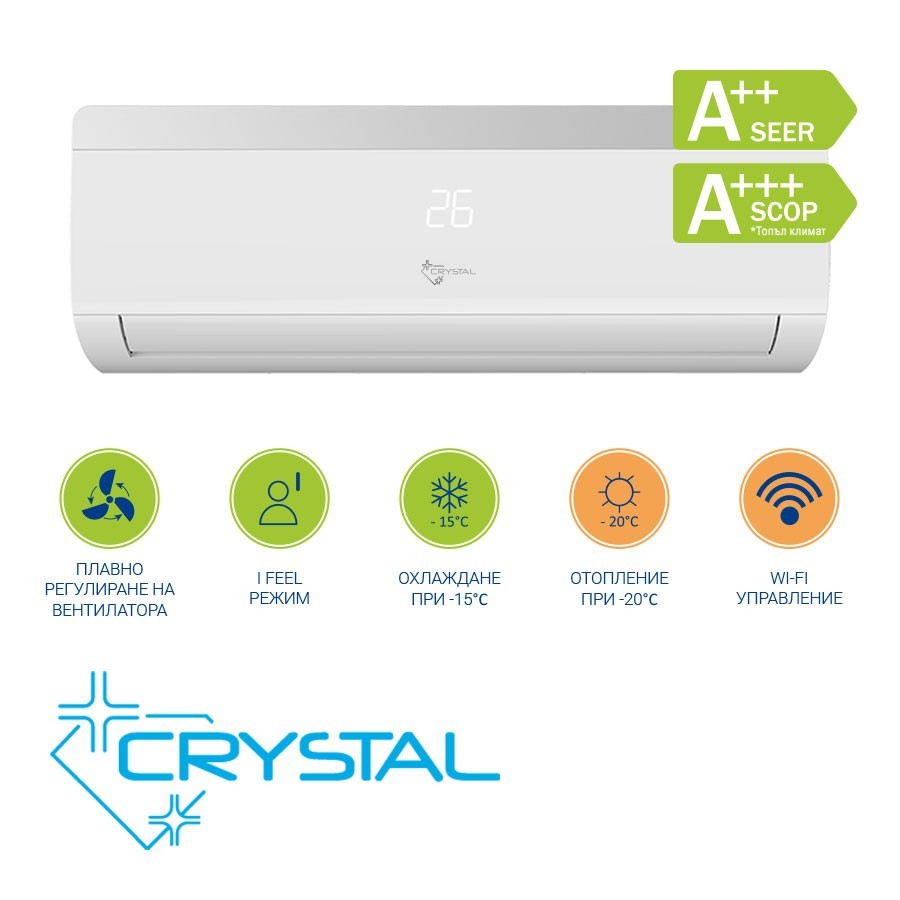

Wall mounted air conditioner Crystal, main futures:
- Super quietfan operation – 19 dB (depending on model).
- Smooth adjustment of indoor unit fan from 1 to 100%
- Health package – silver filter, vitamin C filter, photocatalytic filter
- Turbo mode – operating at maximum airflow and compressor speed to quickly achieve desired room comfort
- Forced defrosting – a combination of buttons can trigger forced defrosting in Heating mode.
- Golden fin is a corrosion-resistant coating on the surface of the heat exchanger inside and outside the body. This ensures that the surface will be more resistant to corrosion and that the period during which the heat exchanger will operate as new will be increased.

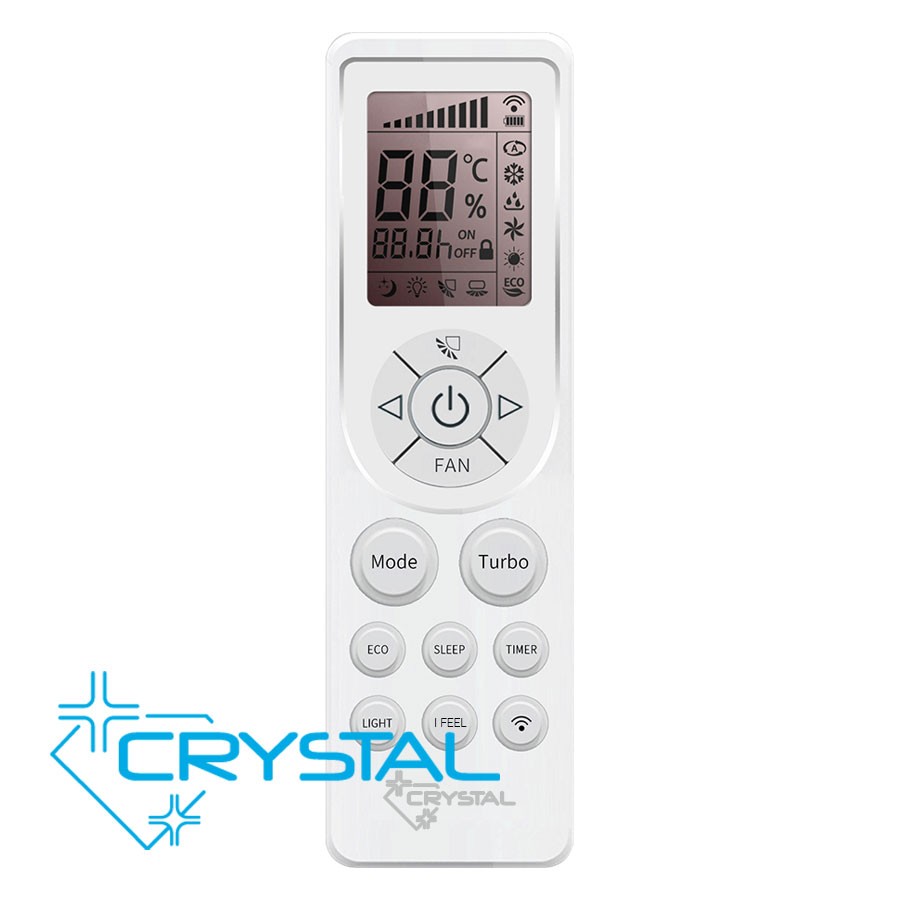

- I FEEL mode – Using the built-in temperature sensor in the remote control, the air conditioner will maintain the preset temperature at the point where the remote control is located.
Some of the features of the remote and the air conditioning extras are:
 |
 |
 |
 |
 |
| Sleep Mode | Turbo Mode | Eco Mode | Anti-corrosion Coating | Automatic Defrost |
 |
 |
 |
 |
 |
| LED display | Low consumption | Timer | Child protection | Automatic restart |
 |
 |
 |
 |
 |
| Self-diagnosis | Gold-plated fins | Health package | Low voltage start | Energy class |
Technical data:
| MODEL | CHI-09S-2A CHO-09S-2A |
CHI-12S-2A CHO-12S-2A |
CHI-18S-2A CHO-18S-2A |
CHI-24S-2A CHO-24S-2A |
||
| Power supply | V, F, HZ | 220-240 V (1 Phase-50 Hz) / Outdoor unit | ||||
| SPECIFICATIONS | ||||||
| Cooling | Power (min – max) | W | 2600 (400 – 3300) | 3500 (550 – 4000) | 5270 (1000 – 6700) | 6450 (1400 – 7000) |
| Consumption (min – max) | W | 750 (150 – 1430) | 1010 (180 – 1560) | 1540 (320 – 2460) | 1840 (380 – 2800) | |
| Current | A | 3.6 | 4.8 | 7.0 | 8.9 | |
| SEER / EER | – | 6.7 / 3.47 | 6.5 / 3.47 | 6.3 / 3.42 | 6.4 / 3.51 | |
| Energy class | Cool | A++ | A++ | A++ | A++ | |
| Heating | Power (min – max) | kW | 2800 (400 – 4100) | 3650 (600 – 5130) | 5500 (1100 – 6800) | 6600 (1500 – 7900) |
| Consumption (min – max) | W | 745 (180 – 1550) | 970 (220 – 1800) | 1480 (350 – 2300) | 1750 (400 – 2500) | |
| Current | A | 3.4 | 4.4 | 6.3 | 8.4 | |
| SCOP (moderate climate) / COP | – | 4.0 / 3.76 | 4.0 / 3.76 | 4.0 / 3.72 | 4.0 / 3.77 | |
| SCOP (warm climate) | – | 5.1 | 5.1 | 5.1 | 5.1 | |
| Energy class | Hot | А+ / A+++ | А+ / A+++ | А+ / A+++ | А+ / A+++ | |
| TECHNICAL DATA | ||||||
| Indoor unit | Sound power | dB(A) | 38/34/21/19 | 40/35/22/20 | 47/44/31/29 | 48/44/35/33 |
| Sound power | dB(A) | 51/47/34/32 | 53/48/35/33 | 58/55/42/40 | 61/57/48/46 | |
| Debit | m3/h | 520/440/230/150 | 580/500/300/230 | 850/760/570/480 | 1090/930/670/560 | |
| Setting Range | °C | 16 ~ 31 | 16 ~ 31 | 16 ~ 31 | 16 ~ 31 | |
| Outdoor unit | Sound power | dB(A) | 52 | 53 | 55 | 59 |
| Sound power | dB(A) | 61 | 62 | 63 | 68 | |
| Debit | m3/h | 1800 | 1800 | 2800 | 3300 | |
| Operating range cooling / heating |
°C | (-15 ~ 48) (-20 ~ 24)* |
(-15 ~ 48) (-20 ~ 24)* |
(-15 ~ 52) (-20 ~ 24)* |
(-15 ~ 52) (-20 ~ 24)* |
|
| Refrigerant | Type / quantity | kg | R32 / 0,52 | R32 / 0,78 | R32 / 0,93 | R32 / 1,05 |
| Extra charging>5 m | g/m | 16 | 16 | 16 | 40 | |
| Heating area (recommended) | m2 | 12-18 | 16-24 | 25-36 | 37-54 | |
| SIZES AND WEIGHT | ||||||
| Indoor unit | Dimensions (W × H × D) | mm | 792x279x195 | 850x291x203 | 972x302x224 | 1081x327x248 |
| Net weight | kg | 9 | 10 | 13 | 16 | |
| Pack sizes. (W×H×D) | mm | 871x290x352 | 930x297x368 | 1047x314x377 | 1158x352x413 | |
| Gross weight | kg | 11 | 12 | 16 | 19 | |
| Outdoor unit | Dimensions (W × H × D) | mm | 830×540×325 | 830×540×325 | 890x598x372 | 960×700×396 |
| Net weight | kg | 29 | 30 | 40 | 44 | |
| Pack sizes. (W×H×D) | mm | 879x605x366 | 879x605x366 | 941x663x412 | 1011x763x455 | |
| Gross weight | kg | 32 | 33 | 43 | 47 | |
| CONNECTING | ||||||
| Pipe connections | Liquid – Gas | Inch. | 1/4″ – 3/8″ | 1/4″- 3/8″ | 1/4″ – 1/2″ | 1/4″- 5/8″ |
| Maximum length | m | 20 | 20 | 25 | 25 | |
| Maximum height | m | 10 | 10 | 10 | 10 | |
| Electrical connections | Power cable | mm2 | 3×1,5 | 3×1,5 | 3×1,5 | 3×2,5 |
| Communication | mm2 | 4×1,5 | 4×1,5 | 4×1,5 | 4×1,5 | |
* when using a low temperature kit; standard operating range for heating (-15 ~ 24) ° C
Dimensions of the outdoor unit and distance of the mounting stands:
| OU Models | A(incl. valves) | A(tray) | B | C | D | E | F | d |
| CHO-09S-2A | 830 | 758 | 255 | 540 | 286 | 325 | 110 | 10×21 |
| CHO-12S-2A | 830 | 758 | 255 | 540 | 286 | 325 | 110 | 10×21 |
| CHO-18S-2A | 890 | 818 | 308 | 550 | 338 | 372 | 134 | 11×17 |
| CHO-24S-2A | 960 | 888 | 338 | 560 | 364 | 396 | 164 | 12×20 |
| CHO-25SL-2A | 830 | 758 | 255 | 540 | 286 | 325 | 110 | 10×21 |
| CHO-35SL-2A | 830 | 758 | 255 | 540 | 286 | 325 | 110 | 10×21 |
