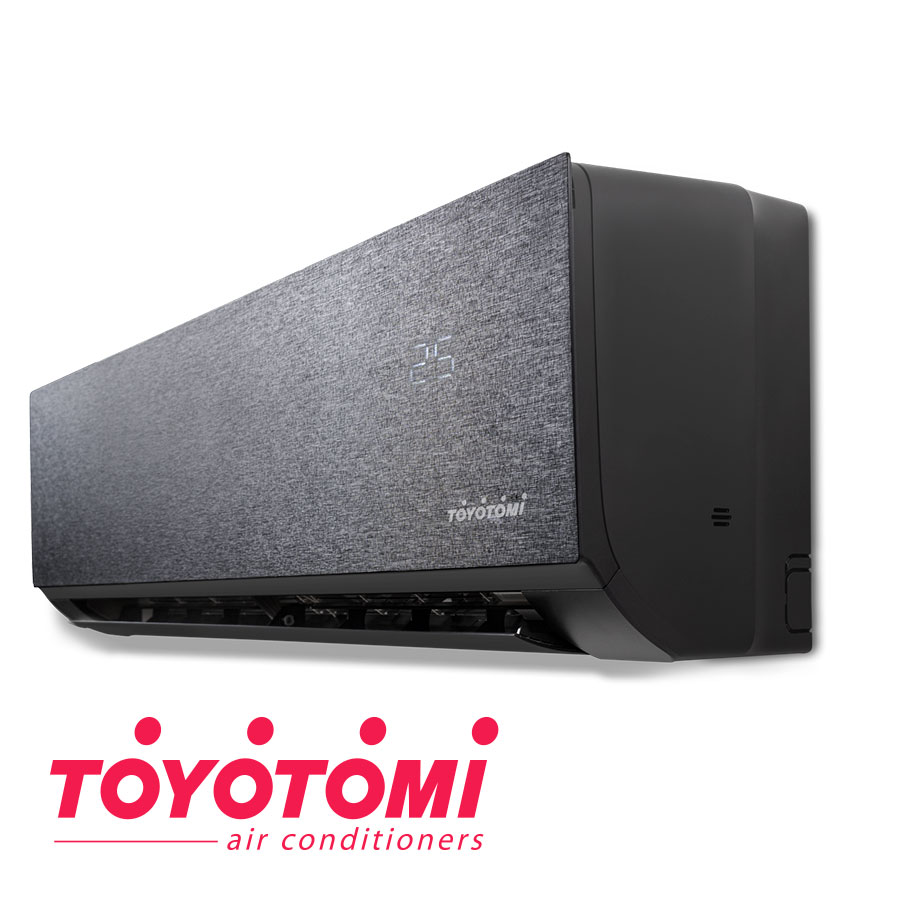

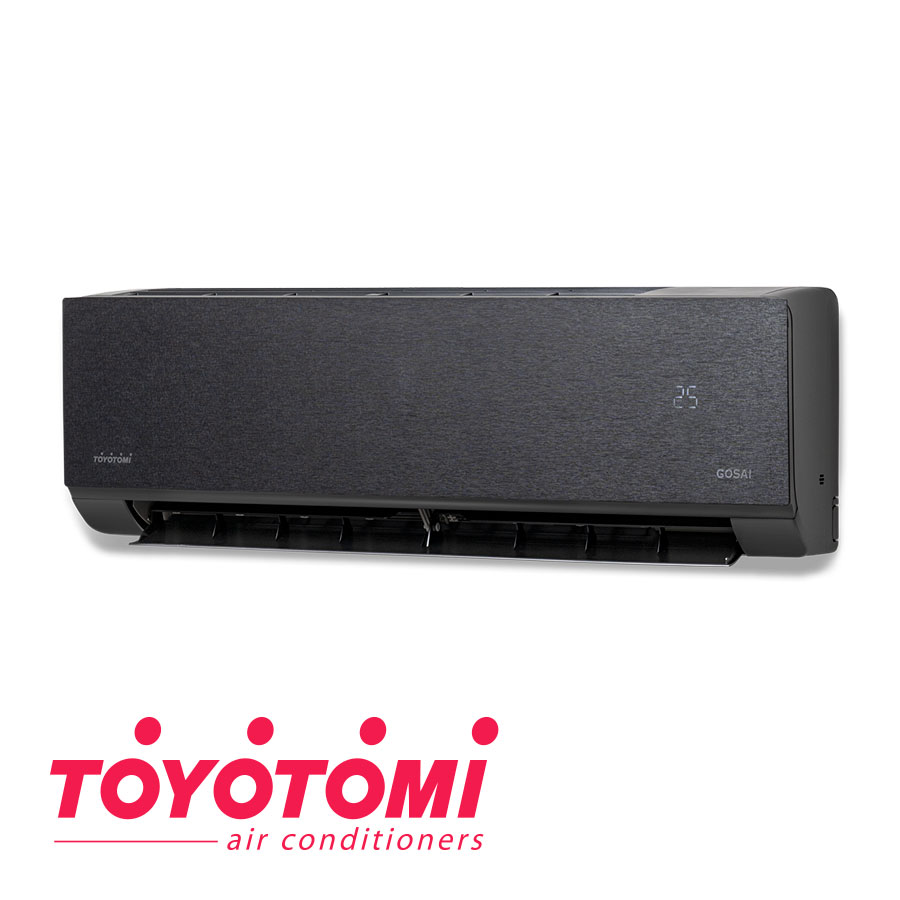

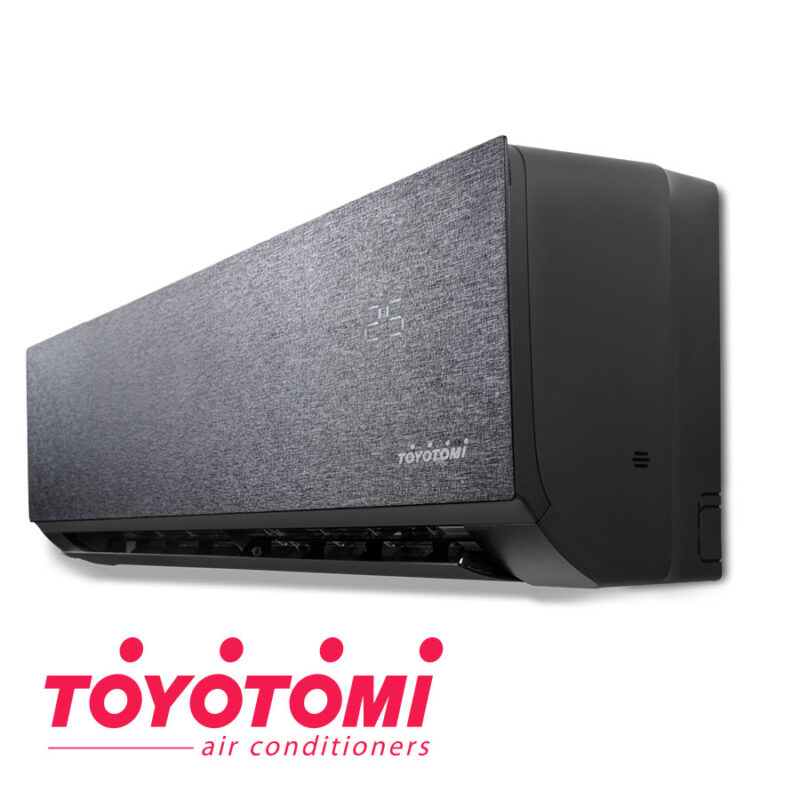

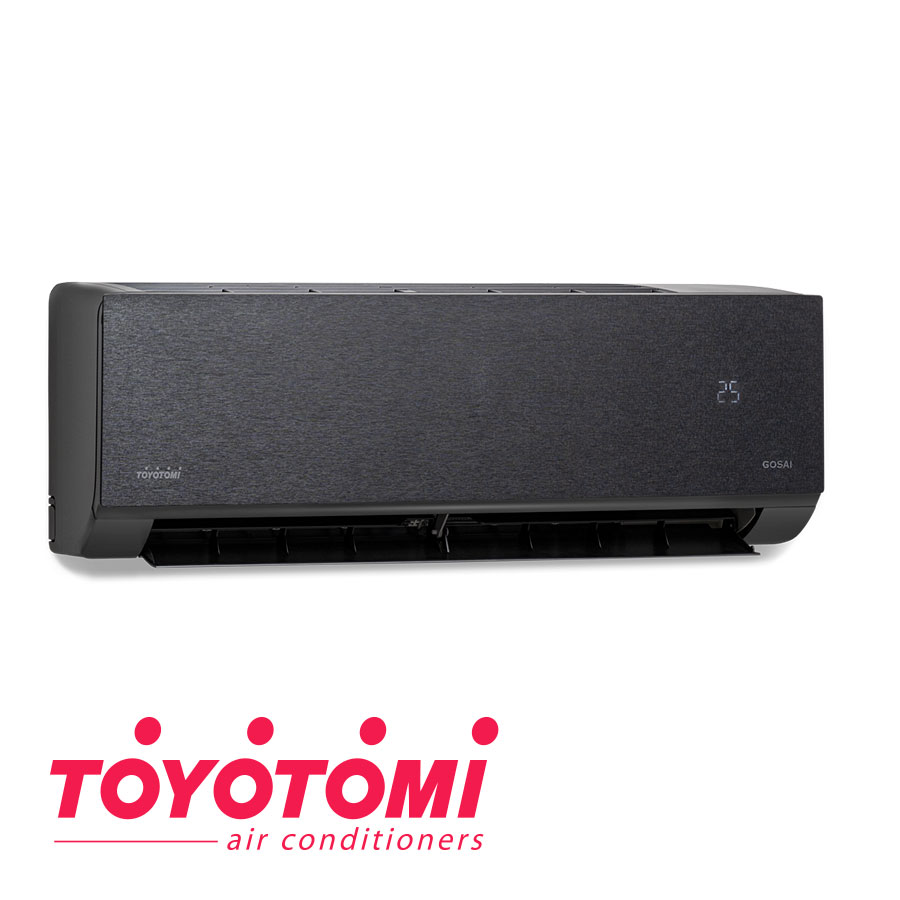

Inverter air conditioner TOYOTOMI Gosai Shadow Black GTN/GTG-12CMB
The Toyotomi Gosai air conditioner series has the highest energy class A+++ in cooling and heating for maximum energy savings, ensuring high performance and trouble-free operation with low consumption and economy.
The ionizer, the advanced Hepa 3PLUS triple filter (Hepa / Biology Sterilization / Silver Ion), as well as the Self Clean sterilization at 56°C and the Autoclean functions ensure a clean and healthy atmosphere in the room.
Extremely low noise levels, combined with the Sleep and Night Mode functions, create ideal conditions for comfort.
741.37 € VAT included
High energy class
TOYOTOMI air conditioners achieve energy savings of up to 45%.
High energy class A+++ means:
High quality workmanship
Better air conditioner performance
Greater economy in energy consumption
Protection of the environment
Energy saving function
TOYOTOMI air conditioners automatically adjust the temperature based on the factory settings, so as to achieve the maximum possible energy savings.
WI-FI FUNCTION
Use technology to create the ideal conditions in your space from a distance! Choose at any time and from any place and if you are the desired function and activate your air conditioner easily through your mobile phone or tablet!
Self-cleaning sterilization mode at 56°C
The self-cleaning/sterilizing function ensures that dirt, dust and moisture are removed from the inner element. Prevents the formation of mold and fights germs and viruses, as well as unpleasant odors. A clean interior means a healthy atmosphere, better performance and energy savings.
Night mode
As soon as the sleep mode is activated, the night mode function is activated at the same time. The Night mode function reduces the noise of the outdoor unit to 40dB(A) from 50-60dB(A), which is the usual noise level of outdoor units.
Technical parameters
| MODEL | GTN/GTG-09CMB | GTN/GTG-12CMB | GTN/GTG-18CMB | GTN/GTG-24CMB | |||
| Power according to the type of climate | |||||||
| Power | kW | 2.7 | 3.5 | 5.1 | 7.1 | ||
| Temperate climate | kW | 2.7 | 3 | 4.1 | 5.6 | ||
| Warm climate | kW | 2.9 | 3.5 | 4.3 | 5.7 | ||
| Cooling / heating power | |||||||
| (*) Cooling | Power | Btu/h | 9212.4 | 11942 | 17401 | 24225 | |
| kW | 2.7 | 3.5 | 5.1 | 7.1 | |||
| Range of work | Btu/h | 1365 – 13000 | 3070 – 14672 | 3412 – 22178 | 3400 – 30367 | ||
| kW | 0.40- 3.70 | 0.90 – 4.30 | 1.00 – 6.50 | 1.00 – 8.90 | |||
| (*) Heating | Power | Btu/h | 10236 | 12966 | 19107 | 26614 | |
| kW | 3 | 3.8 | 5.6 | 7.8 | |||
| Range of work | Btu/h | 2.388 – 14200 | 3070 – 16000 | 3753 – 23201 | 5118 – 32414 | ||
| kW | 0.70 – 4.00 | 0.90 – 4.70 | 1.10 – 6.80 | 1.50 – 9.50 | |||
| Seasonal efficiency | |||||||
| Cooling | SEER | 8.5 | 8.5 | 8.5 | 8.5 | ||
| Energy class | A+++ | A+++ | A+++ | A+++ | |||
| Heating | SCOP (temperate climate) | 4.6 | 4.8 | 4.6 | 4.6 | ||
| Energy class (temperate climate) | A++ | A++ | A++ | A++ | |||
| SCOP (warm climate) | 5.7 | 5.8 | 5.8 | 5.7 | |||
| Energy class (warm climate) | A+++ | A+++ | A+++ | A+++ | |||
| Electrical consumption | |||||||
| Power supply / Frequency | Ph-V-Hz | 1-220~240V-50 | 1-220~240V-50 | 1-220~240V-50 | 1-220~240V-50 | ||
| Cooling | Annual electricity consumption | kWh/a | 111 | 144 | 210 | 292 | |
| Heating | Annual electricity consumption (temperate climate) | kWh/a | 822 | 875 | 1248 | 1704 | |
| Annual electricity consumption (warm climate) | kWh/a | 712 | 845 | 1038 | 1400 | ||
| Technical data | |||||||
| Dehumidification | L/h | 0.8 | 0.7 | 1.8 | 2.5 | ||
| Indoor flow (Turbo / Hi / Mi / Low) | m3/h | 610/500/290/ 180 |
650/505/330/ 310 |
1000/870/640/600 | 1250/1000/850/ 600 |
||
| Sound power (Indoor) (Hi) | dB(A) | 57 | 58 | 60 | 65 | ||
| Sound Pressure (Inner Body)(SH/Mhi/Mlo/SLo) | dB(A) | 39/34/24/18 | 43/37/30/18 | 47/43/33/26 | 48/41/37/27 | ||
| Sound power (outdoor unit) (Hi) | dB(A) | 61 | 63 | 65 | 70 | ||
| Sound pressure (external body)(Hi) | dB(A) | 51 | 52 | 59 | 60 | ||
| Dimensions and weight | |||||||
| Indoor unit | Dimensions (W * H * D) | mm | 867x276x206 | 867x276x206 | 978x333x248 | 1116x333x248 | |
| Net weight | kg | 9 | 9 | 13.5 | 15.5 | ||

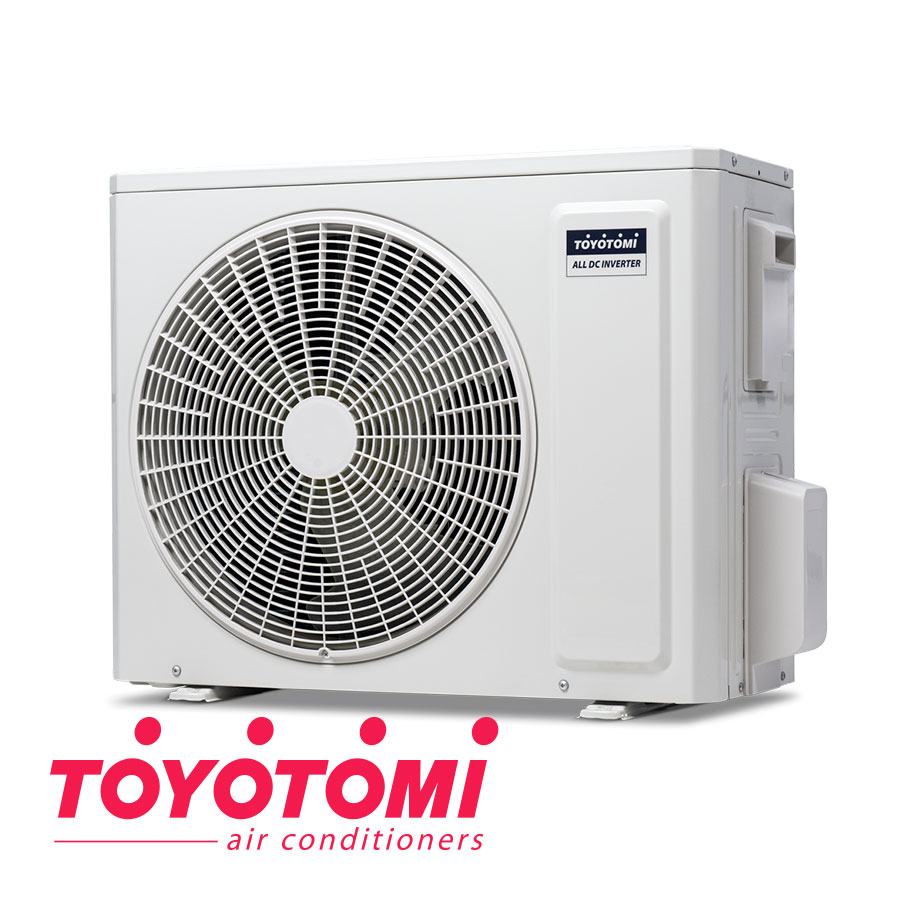

| Outdoor unit | Dimensions (W * H * D) | mm | 732x555x330 | 802x555x350 | 873x555x376 | 958x660x402 | |
| Net weight | kg | 23.5 | 27 | 37 | 42.5 | ||
| Outdoor unit | metal | metal | metal | metal | |||
| Pipe connections | |||||||
| Pipe connections | Liquid | mm(inch) | 6.35 (1/4“) | 6.35 (1/4“) | 6.35 (1/4“) | 6.35 (1/4“) | |
| Gas | mm(inch) | 9.53 (3/8“) | 9.53 (3/8“) | 12.7 (1/2“) | 15.88 (5/8“) | ||
| Maximum length | m | 15 | 20 | 25 | 25 | ||
| Maximum height | m | 10 | 10 | 10 | 10 | ||
| Specifications | |||||||
| Modes | Cooling | (ºC) | -15 ~ 50 | -15 ~ 50 | -15 ~ 50 | -15 ~ 50 | |
| Heating | (ºC) | – 15 ~ 30 | – 15 ~ 30 | – 15 ~ 30 | – 15 ~ 30 | ||
| Refrigerant | R32 | R32 | R32 | R32 | |||
| Ionizer | YES | YES | YES | YES | |||
| Wi-Fi (option) | YES | YES | YES | YES | |||
| Filters | 1x filter with triple action HEPA/silver PP ions/sterilizing; 1x high-density photocatalytic filter | 1x triple-action filter HEPA/silver PP ions/sterilizing; 1x high-density photocatalytic filter | 1x triple-action filter HEPA/silver PP ions/sterilizing; 1x high-density photocatalytic filter | 1x triple-action filter HEPA/silver PP ions/sterilizing; 1x high density photocatalytic filter | |||
| Additional features | Economy mode | Anti-freeze mode |self-cleaning function |Blue slats | function I sense | Smart heating function | Smart defrost function | Soft start function | Turbo function | Auto restart function |Dehumidification function |Lock function | Automatic horizontal and vertical movement of the blinds | Self-diagnosis system | Silent function | Function Sleep | Timer function | Saving the desired position of the slats | Connect to centralized management | Hotel menu function (option) |Door card control function (option) | ||||||
