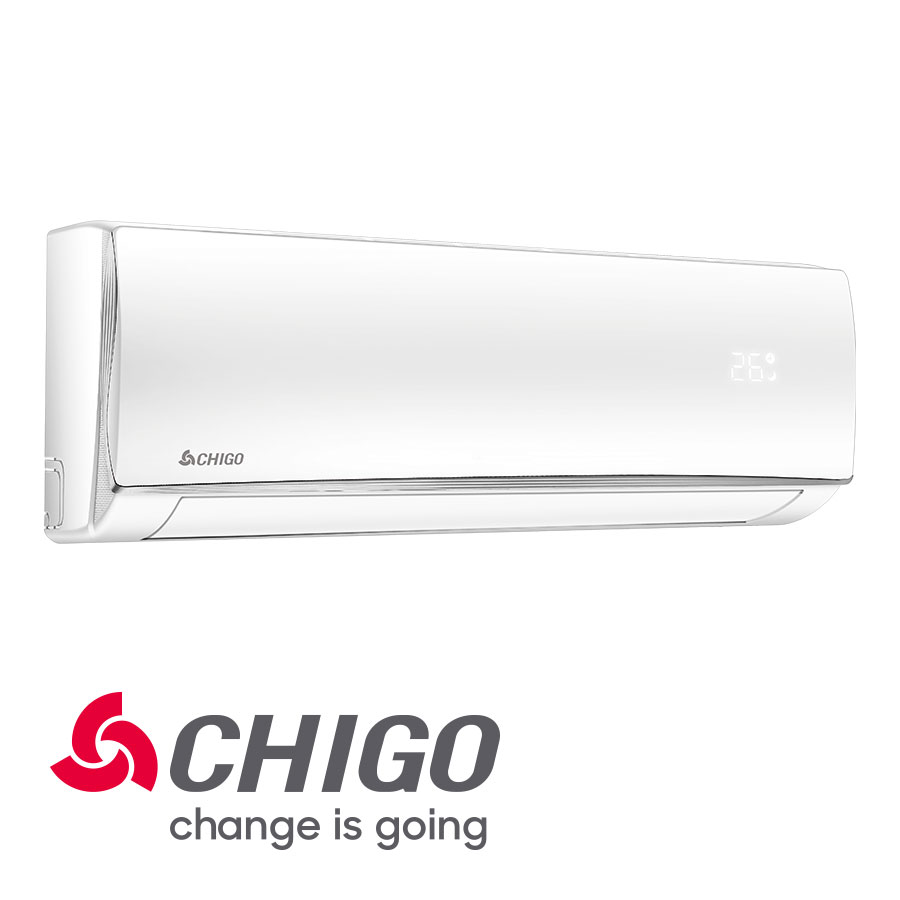

Inverter high-wall air conditioner CHIGO AC-24CHSD WIFI, with included WiFi module
Air conditioner CHIGO AC-24CHSD WIFI
is equipped with a compressor with inverter control. New inverter air conditioner with refrigerant R32. The air conditioner has also – automatic restart, timer on/off, “Sleep” mode, independent drying, smart defrost. All models of the range has a wide range of power supply from 170V to 265V and automatic self-diagnostics. With included Wi-Fi module.
-20%
Original price was: 1 098.77 €.879.02 €Current price is: 879.02 €. VAT included
Inverter high-wall air conditioner CHIGO AC-24CHSD WIFI, with included WiFi module
Advantages
-
Compressor with inverter control;
-
High quality finned copper tubes;
-
repeatedly fluted evaporator;
-
Covered with hydrophilic film, external body heat exchanger;
-
Self-diagnostics and automatic control;
-
automatic restart;
-
On/off timer;
-
“Sleep” mode;
-
Independent drying;
-
Intelligent defrost.
-
Higher energy efficiency (about 5%)
- More environmentally friendly than R410A – (68% lower global warming potential – GWP)
- Less amount charged in air conditioners (about 30%)
All models of the range feature a wide power supply range of 170V to 265V and automatic self-diagnostics
Technical data
| MODEL | AC-09CHSD WIFI | AC-12CHSD WIFI | AC-18CHSD WIFI | AC-24CHSD WIFI | ||
| Power supply | V, F, HZ | 220-240 V (1 Phase-50 Hz) / Outdoor unit | ||||
| SPECIFICATIONS | ||||||
| Cooling | Power (min – max) | W | 2600 (940 – 3300) | 3400 (1000 – 3770) | 5100 (1250 – 5910) | 6810 (1830 – 7800) |
| Consumption (min – max) | W | 825 (240 – 1380) | 1130 (290 – 1500) | 1580 (330 – 2340) | 2257 (410 – 2824) | |
| Current | A | 4.0 (1.2 – 8.0) | 5.8 (1.5 – 9.0) | 8.1 (1.7 – 12.0) | 10.7 (2.3 – 12.3) | |
| SEER / EER | – | 6.1 / 3.15 | 6.1 / 3.0 | 6.1 / 3.22 | 6.1 / 3.01 | |
| Energy class | Cool | A++ | A++ | A++ | A++ | |
| Heating | Power (min – max) | W | 2610 (940 – 3360) | 3420 (1000 – 3810) | 5100 (1250 – 6070) | 6870 (1850 – 7900) |
| Consumption (min – max) | W | 767 (240 – 1552) | 1005 (290 – 1720) | 1374 (340 – 2520) | 2063 (420 – 3005) | |
| Current | A | 3.8 (1.2 – 9.0) | 5.1 (1.5 – 10.0) | 7.0 (1.7 – 13.0) | 9.9 (2.3 – 13.5) | |
| SCOP (moderate climate) / COP | – | 4 / 3.4 | 4 / 3.4 | 4 / 3.71 | 4 / 3.33 | |
| Energy class (mental/warm class) | Heat | А+ / A+++ | А+ / A+++ | А+ / A+++ | А+ / A+++ | |
| TECHNICAL DATA | ||||||
| Indoor unit | Sound power | dB(A) | 40/37/33/25/22 | 40/37/33/25/22 | 43/41/38//35/27 | 44/41/38/34/30 |
| Sound power (max.) | dB(A) | 50/47/43/35/32 | 50/47/43/35/32 | 53/50/47/43/36 | 54/51/48/44/40 | |
| Debit | m3/h | 550 | 550 | 800 | 980 | |
| Setting Range | °C | 16-31 | 16-31 | 16-31 | 16-31 | |
| Outdoor unit | Sound power | dB(A) | 50 | 50 | 55 | 57 |
| Sound power | dB(A) | 60 | 60 | 65 | 67 | |
| Debit | m3/h | 1700 | 1700 | 2600 | 3000 | |
| Range of work cooling / heating |
°C | (-15 ~ 53) / (-20 ~ 30) | (-15 ~ 53) / (-20 ~ 30) | (-15 ~ 53) / (-20 ~ 30) | (-15 ~ 53) / (-20 ~ 30) | |
| Mounting size of the stand | mm | 362 | 362 | 516 | 586 | |
| Refrigerant | Type / quantity | kg | R32 / 0.49 | R32 / 0.49 | R32 / 1 | R32 / 1.11 |
| Extra loading >5m. | g/m | 15 | 15 | 25 | 25 | |
| Heating area (recommended) | m2 | 9~16 | 14~22 | 20~35 | 27~45 | |
| SIZES AND WEIGHT | ||||||
| Indoor unit | Dimensions (WxHxD) | mm | 777×250×201 | 777×250×201 | 910×294×206 | 1010×315×220 |
| Net weight | kg | 7.5 | 7.5 | 10 | 13 | |
| Pack sizes. (W×H×D) | mm | 850×320×275 | 850×320×275 | 979×372×277 | 1096×390×297 | |
| Gross weight | kg | 10 | 10 | 13 | 16 | |
| Outdoor unit | Dimensions (WxHxD) | mm | 712×276×459 | 712×276×459 | 853×602×349 | 920×699×380 |
| Net weight | kg | 22 | 22 | 35 | 40 | |
| Pack sizes. (W×H×D) | mm | 765×310×481 | 765×310×481 | 890×628×385 | 960×732×400 | |
| Gross weight | kg | 24 | 24 | 38 | 43 | |
| CONNECTING | ||||||
| Pipe connections | Liquid – Gas | Inch. | 1/4” – 3/8” | 1/4” – 3/8” | 1/4” – 3/8” | 1/4” – 1/2” |
| Maximum length | m | 25 | 25 | 25 | 25 | |
| Maximum height | m | 10 | 10 | 10 | 10 | |
| Electrical connections | Power cable | mm2 | 3×1.5 – outdoor unit | 3×1.5 – outdoor unit | 3×1.5 – outdoor unit | 3×2.5 – outdoor unit |
| Communication | mm2 | 4×1.5 | 4×1.5 | 4×1.5 | 4×1.5 | |
| Prices in BGN with VAT
and included WiFi module |
899 | 999 | 1649 | 2149 | ||
Documents
Sheet with technical parameters
Price list CHIGO air conditioners
