Air-cooled chillers CLINT CHA/K/A/WP 726-P ÷ 24012-P

Air cooled chillers from 227 kW to 762 kW

Clint Air cooled Chillers are a new line of air / water heat pumps for hot water production up to 60°C and operating at -20°C outside temperature. These chillers are designed for year-round production and control of high-temperature domestic water, autonomous heating in winter and cooling in summer in residential, office and office buildings. Chiller with easy installation has significant energy savings and high reliability. Flexibility is the main advantage of these chillers.

Power (Model):	199 – 1242 kW (Multi Power)
Type:	Air – Water

Categories: Chillers, Air cooled liquid chillersSKU: CHA/K/A/WP 726-P ÷ 24012-P

Air-cooled chillers CLINT CHA/K/A/WP 726-P ÷ 24012-P цена - Chillers | BGR Group

Send an inquiry

The chillers CHA/K/A/WP 726-P ÷ 24012-P MULTIPOWER,

are heat pump aggregates all of energy class A, with the highest energy efficiency. MULTIPOWER is an extremely reliable and flexible technology: Intelligent Control Module optimizes working time and energy consumed by spiral compressors depending on the actual heat load of the system. The units operate with the R410A refrigerant, which ensures full compliance with the requirements of the Kyoto Protocol (O.D.P. = 0) and provides maximum energy efficiency.

Chillers generate significant energy savings,

highly increased ESEER values, eliminate the occurrence of current shocks and the need for a buffer tank. Automatic adaptation of fan speed to system load ensures extremely quiet operation, creating benefits, especially at night. The use of multiple components and a large number of compressors makes the series extremely reliable, significantly increases its service life and reduces the risk of stopping: an error in one of the compressors in no way compromises the performance of the unit that will continue to cool down at reduced power. At the same time, maintenance activities are considerably reduced due to the high reliability of the aggregates and their components.

Air-cooled chillers CLINT CHA/K/A/WP, main futures:

Structure with galvanized sheet frame with polyester powder coating;
Spiral compressors with oil level viewfinder, built-in thermal protection in the compressor and car heater;
Axial fans directly copied to the external rotor of the engine;
Condenser made of copper tubes, ribbed with aluminum lamellae;
AISI 316 stainless steel evaporator (spliced type) with two independent refrigeration circuits and one water supply complete with a pressostat. The units are equipped with anti-freeze protection;
Electronic TRV;
Freon R410A;
The electrical panel includes: main switch with automatic door locking, fuses, overload protection of the compressors and fan contactor;
Microprocessor and control system;

Technical data

CHA/K/A/WP			726-P	786-P	826-P	906-P	1048-P	1128-P	1208-P
Heating	Heating capacity (1)	kW	227	256	272	294	342	369	389
	Energy consumed (1)	kW	66	75	81	85	102	106	112
	COP (1)		3.44	3.41	3.36	3.46	3.35	3.48	3.47
Heating (EN 14511)	Heating capacity (1)	kW	228	257	273	295	343	370	390
	Energy consumed (1)	kW	68	77	83	87	105	108	115
	COP (1)		3.35	3.34	3.29	3.39	3.27	3.43	3.39
Cooling	Cooling power (2)	kW	194	217	239	259	294	322	339
Cooling	Energy consumed (2)	kW	68	75	78	85	100	107	113
Cooling (EN 14511)	Cooling power (2)	kW	193	216	238	258	293	321	338
	Energy consumed (2)	kW	69	76	79	86	101	108	114
	EER (2)		2.80	2.84	3.01	3.00	2.90	2.97	2.96
Compressor	Number	n°	3+3	3+3	3+3	3+3	4+4	4+4	4+4
	Cooling circles	n°	2	2	2	2	2	2	2
	Steps	n°	6				8
Evaporator	Water flow	l/s	9.27	10.37	11.42	12.37	14.05	15.38	16.20
	Loss of pressure	kPa	44	55	42	38	49	37	41
	Pipe connection	DN	80	80	80	80	80	80	80
Electrical characteristics	Power supply	V/Ph/Hz	400/3/50
	Max. Operating current	A	157	169	186	203	228	246	263
	Max. Starting current	A	280	302	353	370	361	413	430
With a pump	Static pump pressure	kPa	195	165	230	220	240	235	230
With a pump	Water jacket	DN	100	100	100	100	100	100	100
Sound level	STD (3)	dB(A)	69	67	68	68	68	69	70
	Low noise version	dB(A)	66	64	65	65	65	66	67
	Super quiet version	dB(A)	58	60	61	61	61	62	62
Weight	Transport weight	kg	1954	2291	2409	2437	2567	2820	2830
Weight	Shipping weight	kg	1970	2310	2430	2460	2590	2850	2860

CHA/K/A/WP			13010-P	15010-P	16812-P	18012-P	21012-P	24012-P
Heating	Heating capacity (1)	kW	420	476	532	566	677	762
	Energy consumed (1)	kW	125	141	157	169	202	226
	COP (1)		3.36	3.38	3.39	3.35	3.35	3.37
Heating (EN 14511)	Heating capacity (1)	kW	422	478	533	568	679	764
	Energy consumed (1)	kW	128	144	160	172	206	230
	COP (1)		3.30	3.32	3.33	3.30	3.30	3.32
Cooling	Cooling power (2)	kW	359	421	475	512	597	671
Cooling	Energy consumed (2)	kW	127	144	162	172	207	241
Cooling (EN 14511)	Cooling power (2)	kW	358	419	474	510	595	669
	Energy consumed (2)	kW	128	146	163	174	209	243
	EER (2)		2.80	2.87	2.91	2.93	2.85	2.75
Compressor	Number	n°	5+5	5+5	6+6	6+6	6+6	6+6
	Cooling circles	n°	2	2	2	2	2	2
	Steps	n°	8		10
Evaporator	Water flow	l/s	17.15	20.11	22.69	24.46	28.52	32.06
	Loss of pressure	kPa	46	46	32	37	33	30
	Pipe connection	DN	80	80	150	150	150	150
Electrical characteristics	Power supply	V/Ph/Hz	400/3/50
	Max. Operating current	A	279	331	365	339	458	509
	Max. Starting current	A	412	498	532	566	608	685
With a pump	Static pump pressure	kPa	215	185	205	190	185	175
With a pump	Water jacket	DN	100	100	100	100	150	150
Sound level	STD (3)	dB(A)	70	73	73	73	73	74
	Low noise version	dB(A)	67	70	70	70	70	71
	Super quiet version	dB(A)	62	63	64	65
Weight	Transport weight	kg	3019	3164	3702	3832	4660	4698
Weight	Shipping weight	kg	3050	3200	3750	3880	4720	4770

Remarks:

Cold water from 12 ° C to 7 ° C, outside temperature 35 ° C;
Sound level measured at 1 m from the location of the unit according to ISO 3744;
N.B. The weight of the SSL version is specified in the technical documentation

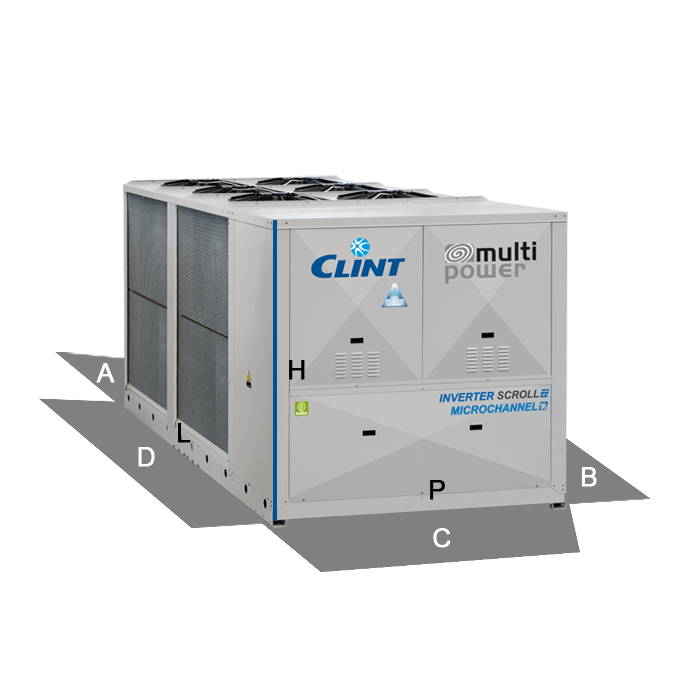

Dimensions

CHA/K/A/WP			726-P	786-P	826-P	906-P	1048-P	1128-P	1208-P	13010-P	15010-P	16812-P	18012-P	21012-P	24012-P
L	STD	mm	2800	4000	4000	4000	4000	5000	5000	5000	5000	6200	6200	7200	7200
L	SSL	mm	4000	4000	5000	5000	5000	5000	5000	5000	6200	6200	7200
P	STD	mm	2200	2200	2200	2200	2200	2200	2200	2200	2200	2200	2200	2200	2200
H	STD	mm	2100	2100	2100	2100	2100	2100	2100	2100	2100	2100	2100	2100	2100

CHA/K/A/WP 726-P ÷ 24012-P
A	mm	500
B	mm	1800
C	mm	1000
D	mm	1800
