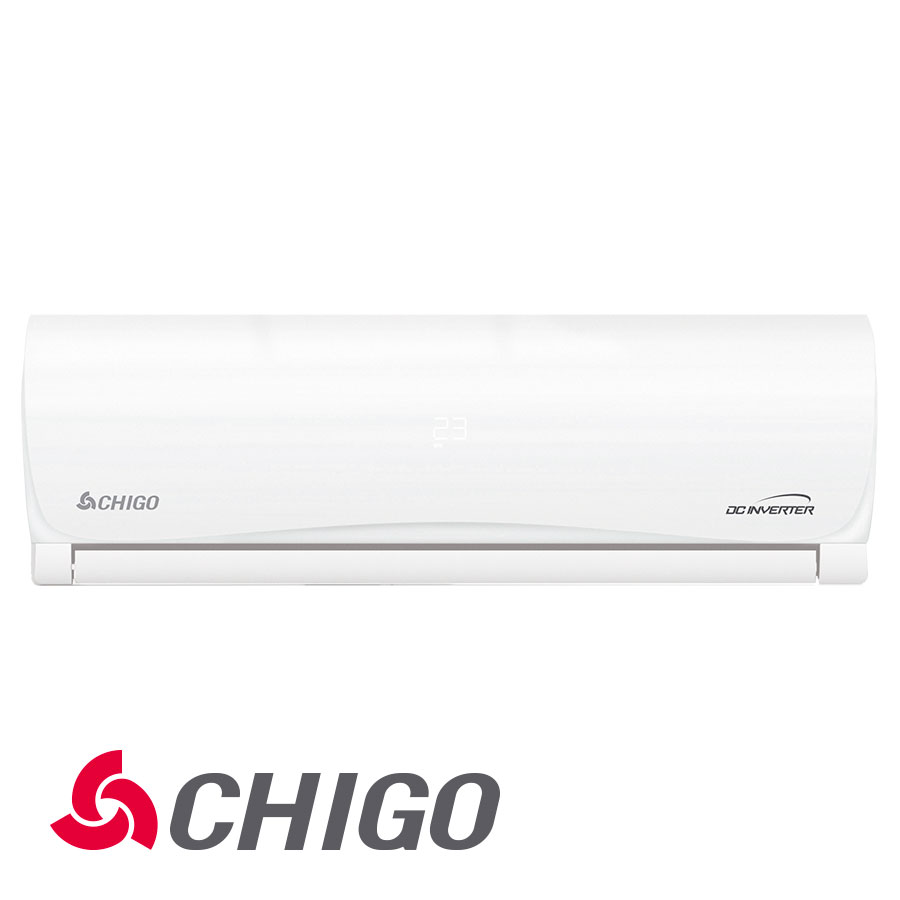

Inverter air conditioner CHIGO CS-50
The new model of Chigo air conditioners comes with an anti-corrosion coating on the heat exchangers “Golden fin”, thanks to which they become more resistant to corrosion and more effectively prevent the development of bacteria. All models in the range have the following features:
- self cleaning
- self-diagnosis
- auto restart
- intelligent defrosting
- wide operating temperature range
690.24 € VAT included
Technical parameters
| MODEL | CS-25V3G-1C170AY6 WIFI | CS-35V3G-1C170AY4A WIFI | CS-51V3G-1D170AH5A WIFI | CS-70V3G-1H170AE3C WIFI | ||
| Power supply | V, F, HZ | 220-240 V (1 Phase-50 Hz) / Outdoor unit | ||||
| SPECIFICATIONS | ||||||
| Cooling | Power (min – max) | W | 2500(300-3200) | 3500 (300 – 3800) | 5100 (500 – 5400) | 6500 (600 – 6600) |
| Consumption (min – max) | W | 800 (150 – 1300) | 1090 (150 – 1400) | 1680 (170 – 1850) | 2000 (210 – 2180) | |
| Current | A | 3.6 (0.8 – 5.8) | 4.9 (0.8 – 6.9) | 7.9 (1.0 – 8.3) | 9.2 (1.2 – 10.0) | |
| SEER / EER | – | 6.1 / 3.70 | 6.1 / 3.7 | 6.1 / 3.71 | 6.1 / 3.60 | |
| Energy class | Cool | A++ | A++ | A++ | A++ | |
| Heating | Power (min – max) | W | 2600 (300 – 3300) | 3500 (300 – 3900) | 5100 (500 – 5600) | 6500 (600 – 6800) |
| Consumption (min – max) | W | 750 (1500 – 1250) | 990 (150 – 1270) | 1540 (170 – 1900) | 1850 (210 – 2050) | |
| Current | A | 3.4 (0.8 – 5.6) | 4.5 (0.8 – 6.2) | 7.3 (1.0 – 8.5) | 8.5 (1.2 – 9.4) | |
| SCOP (moderate climate) / COP | – | 4 / 3.7 | 4 / 3.71 | 4 / 3.70 | 4 / 3.70 | |
| Energy class (mental/warm class) | Heat | А+ / A+++ | А+ / A+++ | А+ / A+++ | А+ / A+++ | |
| TECHNICAL DATA | ||||||
| Indoor unit | Sound power | dB(A) | 40/37/33/25/22 | 40/37/33/25/22 | 43/41/38//35/27 | 44/41/38/34/30 |
| Sound power (max.) | dB(A) | 50/47/43/35/32 | 50/47/43/35/32 | 53/50/47/43/36 | 54/51/48/44/40 | |
| Debit | m3/h | 500 | 600 | 700 | 1000 | |
| Setting Range | °C | 16-31 | 16-31 | 16-31 | 16-31 | |
| Outdoor unit | Sound power | dB(A) | 53 | 53 | 55 | 55 |
| Sound power | dB(A) | 63 | 63 | 65 | 65 | |
| Debit | m3/h | 1700 | 1700 | 2600 | 3000 | |
| Range of work
cooling / heating |
°C | (-15 ~ 53) / (-20 ~ 30) | (-15 ~ 53) / (-20 ~ 30) | (-15 ~ 53) / (-20 ~ 30) | (-15 ~ 53) / (-20 ~ 30) | |
| Mounting size of the stand | mm | – | – | – | – | |
| Refrigerant | Type / quantity | kg | R32 / 0.49 | R32 / 0.53 | R32 / 1.01 | R32 / 1.20 |
| Extra loading >5m. | g/m | 20 | 15 | 30 | 25 | |
| Heating area (recommended) | m2 | 9~16 | 14~22 | 20~35 | 27~45 | |
| SIZES AND WEIGHT | ||||||
| Indoor unit | Dimensions (WxHxD) | mm | 680×252×206 | 780×276×202 | 850×276×202 | 950×313×240 |
| Net weight | kg | 8 | 10 | 11 | 14 | |
| Pack sizes. (W×H×D) | mm | 755×333×291 | 870×367×282 | 940×367×282 | 1045×403×327 | |
| Gross weight | kg | 9.5 | 12 | 13 | 17 | |
| Outdoor unit | Dimensions (WxHxD) | mm | 700×503×260 | 700×503×260 | 835×546×322 | 835×546×322 |
| Net weight | kg | 21 | 21 | 30 | 32 | |
| Pack sizes. (W×H×D) | mm | 798×554×321 | 798×554×321 | 934×608×382 | 934×608×382 | |
| Gross weight | kg | 23 | 23 | 32 | 35 | |
| CONNECTING | ||||||
| Pipe connections | Liquid – Gas | Inch. | 1/4″ – 3/8″ | 1/4″ – 3/8″ | 1/4″ – 3/8″ | 1/4″ – 1/2″ |
| Maximum length | m | 15 | 15 | 15 | 15 | |
| Maximum height | m | 5 | 5 | 5 | 5 | |
| Electrical connections | Power cable | mm2 | 3×1.5 – outdoor unit | 3×1.5 – outdoor unit | 3×1.5 – outdoor unit | 3×2.5 – outdoor unit |
| Communication | mm2 | 4×1.5 | 4×1.5 | 4×1.5 | 4×1.5 | |
Documents
Sheet with technical parameters
Price list CHIGO air conditioners
