Water-cooled chillers CLINT CWW/K/A 901 ÷ 6202

Water cooled chilers from 320 kW to 2486 kW

are loaded with the R410A environmental refrigerant and are designed to meet the needs of small and medium-sized domestic and industrial systems that require medium and low power, compact size and quiet operation. These chillers are designed for year-round household production, autonomous heating in winter and cooling in the summer. Very economical chiller with a high degree of reliability. Flexibility is the main advantage of these chillers.

Power (Model):	220 – 2500 kW (Maxi Power)
Type:	Water – Water

Categories: Chillers, Water cooled liquid chillersSKU: CWW/K/A 901 ÷ 6202

Water-cooled chillers CLINT CWW/K/A 901 ÷ 6202 цена - Chillers | BGR Group

Send an inquiry

Water cooled chiller CWW/K/A 901÷6202,

Energy Class A are designed to meet the needs of large enterprises in the service and manufacturing sectors.

The units of the series are equipped with the latest generation of screw compressors, shell-tube heat exchangers, the ability to connect the condenser to a water tower, a dry cooler or a well. Optimized design facilitates maintenance, while compact dimensions make the series particularly suited for interior fitting. The inverter control accessory is equipped with a synchronizer that extends the useful life of the compressors, ensuring their smooth spinning at each switch and significantly reduces the starting current.

Water-cooled chillers CLINT CWW/K/A, main futures:

Structure with galvanized sheet frame with polyester powder coating;
Screw compressors with built-in oil separator, suction side filter, oil level viewfinder, built-in thermal protection in the compressor, charcoal heater and hot gas safety valve;
Cowhide evaporator with easy to remove cast iron bottom for easy access and maintenance. Each refrigeration circuit is equipped with a separate capacitor. Water connections for water tower and dry cooler; water connections for drilling as an option;
Cavity tube evaporator with one or two independent refrigerators (depending on the model) and one water circuit;
Electronic TRV;
Freon R410А;
The electrical panel includes: main switch with automatic door locking, fuses, overload protection of compressors;
Microprocessor and control system;

Technical data

CWW/K/A			901	1101	1301	1501	1601	2001	2201	2401	2901	1902
Cooling	Cooling power (1)	kW	320	387	466	508	566	699	792	880	1067	644
	Energy consumed (1)	kW	62	75	90	98	109	135	152	171	207	125
	EER (1)		5.16	5.16	5.18	5.18	5.19	5.18	5.21	5.15	5.15	5.15
Cooling (EN14511)	Cooling power (1)	kW	319	386	465	506	564	697	789	878	1064	642
	Energy consumed (1)	kW	63	76	91	100	111	137	155	173	210	127
	EER (1)		5.06	5.08	5.11	5.06	5.08	5.09	5.09	5.08	5.07	5.06
Compressor	Number	n°	1	1	1	1	1	1	1	1	1	2
	Refrigeration circuit	n°	1	1	1	1	1	1	1	1	1	2
	Steps	n°	Straightforward
Evaporator	Water flow	l/s	15.29	18.49	22.26	24.27	27.04	33.40	37.84	42.04	50.98	30.77
	Loss of pressure	kPa	33	24	34	38	40	34	43	36	41	47
	Pipe connection	DN	150	150	150	150	150	200	200	200	200	150
Capacitor	Water flow	l/s	18.25	22.07	26.56	28.95	32.25	39.85	45.10	50.21	60.87	36.74
	Loss of pressure	kPa	22	22	25	30	29	32	35	37	31	22
	Pipe connection	DN	100	125	125	125	125	150	150	150	150	100
Electrical characteristics	Power supply	V/Ph/Hz	400/3/50
	Max. Operating current	A	144	171	195	195	252	306	322	367	383	288
	Max. Starting current	A	288	288	288	288	455	455	455	656	656	432
Sound power	STD (2)	dB(A)	71	72	73	74	73	74	75	74	75	76
Sound power	SSL (2)	dB(A)	66	67	68	69	68	69	70	69	70	71
Weight	Transport weight	kg	2059	2431	2518	2558	2877	3298	3389	3984	4535	3884
Weight	Operating weight	kg	2270	2760	2880	2920	3240	3890	3980	4710	5310	4380

CWW/K/A			2202	2602	2902	3202	4002	4502	4802	5802	6202
Cooling	Cooling power (1)	kW	781	895	1023	1138	1411	1584	1766	2142	2486
	Energy consumed (1)	kW	152	173	196	219	271	301	337	404	474
	EER (1)		5.14	5.17	5.22	5.20	5.21	5.26	5.24	5.30	5.24
Cooling (EN14511)	Cooling power (1)	kW	779	892	1019	1134	1405	1577	1758	2130	2472
	Energy consumed (1)	kW	154	176	200	223	277	308	345	416	488
	EER (1)		5.06	5.07	5.10	5.09	5.07	5.12	5.10	5.12	5.07
Compressor	Number	n°	2	2	2	2	2	2	2	2	2
	Refrigeration circuit	n°	2	2	2	2	2	2	2	2	2
	Steps	n°	Straightforward
Evaporator	Water flow	l/s	37.31	42.76	48.88	54.37	67.41	75.68	84.38	102.00	119.00
	Loss of pressure	kPa	32	48	53	49	49	57	62	63	72
	Pipe connection	DN	200	200	200	200	250	250	250	250	250
Capacitor	Water flow	l/s	44.58	51.03	58.24	64.83	80.36	90.06	100.00	122.00	141.00
	Loss of pressure	kPa	22	31	57	52	51	54	55	62	61
	Pipe connection	DN	125	125	100	125	125	125	150	150	150
Electrical characteristics	Power supply	V/Ph/Hz	400/3/50
	Max. Operating current	A	342	390	390	504	612	644	734	766	812
	Max. Starting current	A	459	483	483	707	761	777	1023	1039	1062
Sound pressure (2)	STD	dB(A)	76	76	75	75	76	76	76	76	77
Sound pressure (2)	SSL	dB(A)	71	71	70	70	71	71	71	71	72
Weight	Transport weight	kg	4432	4589	4618	5432	5843	6001	7496	8426	8712
Weight	Operating weight	kg	5050	5200	5370	6200	6830	6960	8650	9940	10360

Remarks:

Cold water from 12°C to 7°C and condenser temperature from 30°C to 35°C;
Sound level measured at 1 m from the location of the unit according to ISO 3744;
N.B. The weight of the SSL version is specified in the technical documentation

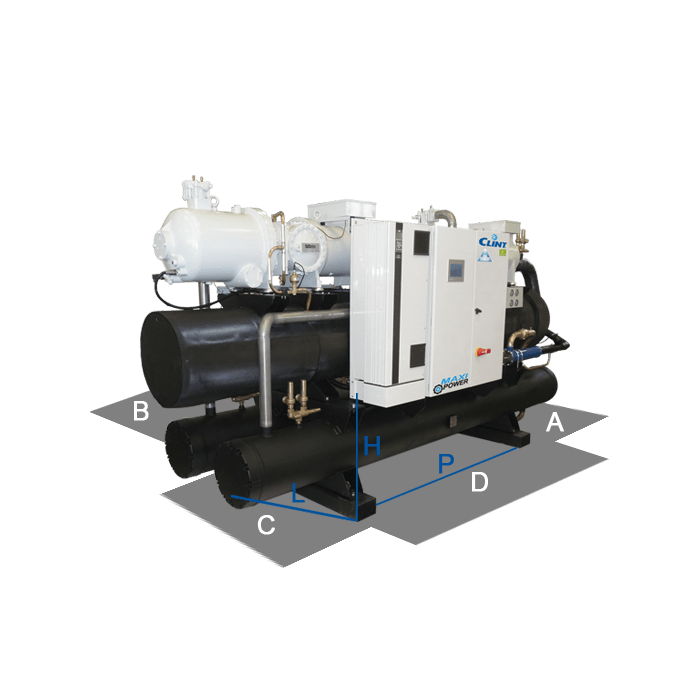

Dimensions

CWW/K/A			901	1101	1301	1501	1601	2001	2201	2401	2901	1902
L	STD	mm	3150	3350	3500	3500	3500	3700	3700	3750	3750	3700
P	STD	mm	1000	1200	1200	1200	1200	1350	1350	1450	1450	1250
H	STD	mm	1850	1950	1950	1950	1950	2050	2050	2200	2200	1900

CWW/K/A			2202	2602	2902	3202	4002	4502	4802	5802	6202
L	STD	mm	3700	3700	4600	4600	4800	4800	4850	4850	4850
P	STD	mm	1300	1300	1300	1400	1400	1400	1400	1400	1400
H	STD	mm	2100	2100	2100	2200	2200	2200	2550	2550	2550

CWW/K/A 901 ÷ 6202
A	mm	500
B	mm	500
C	mm	500
D	mm	800

Documents

Product catalog for Clint chillers
