are of Energy Class A and are designed to meet the needs of medium-sized businesses. They are used in conjunction with terminal devices for room air conditioning or heat removal. Air cooled chillers are equipped with axial fans, inverter helical compressors, condenser heat exchangers with micro-channels and plate heat exchangers, even in the super silent version.
The series includes air-cooled water cooling units from 50 kW to 179 kW
| Power (Model): | 47 – 178 kW (Aqua Plus) |
|---|---|
| Type: | Air – Water |
Air-cooled chillers CLINT CHA/IK/A 172-P-574-P
are of Energy Class A and are designed to meet the needs of medium sized businesses in the service and manufacturing sectors.
They are used in combination with terminal devices, for air-conditioning of premises or the removal of heat generated by manufacturing processes. They can be equipped with a RS 485 Modbus connection that ensures optimal energy efficiency and comfort.
Chillers are equipped with axial fans, inverter helical compressors, condenser heat exchangers with micro-channels and plate heat exchangers, even in the super silent version. Micro-channel condenser heat exchangers provide high energy efficiency (high EER), and inverter control of the compressor ensures high efficiency in partial loads (ESEER-IPLV). The possibility of inverter control of the circulation pump and fans, as well as a number of additional accessories, adds even more to the advantages of the series.
Advantages of air-cooled chillers CLINT CHA/IK/A 172-P-574-P
-
Structure with galvanized sheet frame with polyester powder coating;
-
Inverter helical and ON-OFF helical compressors with oil level sight, built-in thermal protection in compressor and heater;
-
Axial fans directly copied to the external rotor of the engine;
-
Aluminum condenser with microchannels;
-
AISI 316 stainless steel evaporator (spliced type) with one refrigeration and one water circuit in models 192-P ÷ 472-P; with two independent refrigeration circuits and one water in models 534-P ÷ 634-P, equipped with a pressostat;
-
Electronic TRV;
-
Freon 410А;
-
The electrical panel includes: main switch with automatic door locking, fuses, overload protection of the compressors and fan contactor;
-
Electronic proportional noise reduction devices with continuous fan speed control. This also allows the unit to function when cooling down to -20°C outside;
-
Microprocessor and control system;
Technical data
| CHA/IK/A | 172-P | 192-P | 212-P | 232-P | 272-P | 303-P | 352-P | 372-P | 484-P | 574-P | ||
| Cooling | Cooling power (1) |
kW | 49.9 | 57.7 | 65.7 | 74.8 | 85.9 | 97.7 | 112.0 | 130.0 | 152.0 | 179.0 |
| Consum. energy (1) | kW | 15.4 | 17.9 | 20.2 | 23.4 | 26.7 | 30.0 | 34.7 | 40.1 | 46.7 | 55.0 | |
| EER (1) | 3.24 | 3.22 | 3.25 | 3.20 | 3.22 | 3.26 | 3.23 | 3.24 | 3.25 | 3.25 | ||
| Cooling (EN14511) | Cooling power (1) |
kW | 49.6 | 57.4 | 65.4 | 74.4 | 85.4 | 97.2 | 112.0 | 129.0 | 151.0 | 178.0 |
| Consum. energy (1) | kW | 15.7 | 18.2 | 20.5 | 23.8 | 27.2 | 30.5 | 35.2 | 40.7 | 47.3 | 55.6 | |
| EER (1) | 3.16 | 3.15 | 3.19 | 3.13 | 3.14 | 3.19 | 3.18 | 3.17 | 3.19 | 3.20 | ||
| Compressor | Number | n° | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 4 | 4 |
| Cooling circles | n° | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | |
| Steps | Straightforward | |||||||||||
| Evaporator | Water flow | l/s | 2.38 | 2.76 | 3.14 | 3.57 | 4.10 | 4.67 | 5.35 | 6.21 | 7.26 | 8.55 |
| Loss of pressure | kPa | 41 | 40 | 32 | 39 | 47 | 40 | 35 | 44 | 33 | 30 | |
| Pipe connection | “G | 1 1/2″ | 1 1/2″ | 2 1/2″ | 2 1/2″ | 2 1/2″ | 2 1/2″ | 2 1/2″ | 2 1/2″ | 2 1/2″ | 2 1/2″ | |
| Electrical characteristics | Power supply | V/Ph/Hz | 400/3/50 | |||||||||
| Max. Operating current | A | 38 | 43 | 48 | 54 | 64 | 71 | 81 | 88 | 113 | 132 | |
| Max. Starting current | A | 109 | 109 | 154 | 157 | 164 | 214 | 193 | 193 | 227 | 275 | |
| With a pump | Static pump pressure | kPa | 130 | 120 | 120 | 105 | 125 | 160 | 150 | 125 | 105 | 115 |
| Water jacket | ”G | 2″1/2 | 2″1/2 | 2″1/2 | 2″1/2 | 2″1/2 | 2″1/2 | 2″1/2 | 2″1/2 | 2″1/2 | 2″1/2 | |
| Sound level | STD (2) | dB(A) | 57 | 57 | 61 | 61 | 61 | 61 | 62 | 62 | 62 | 62 |
| Low noise version | dB(A) | 55 | 55 | 59 | 59 | 59 | 59 | 60 | 60 | 60 | 60 | |
| Super quiet version | dB(A) | 53 | 53 | 57 | 57 | 56 | 56 | 57 | 57 | |||
| Weight | Transport weight | kg | 584 | 653 | 712 | 721 | 730 | 817 | 1036 | 1045 | 1379 | 1424 |
| Shipping weight |
kg | 590 | 660 | 720 | 730 | 740 | 830 | 1050 | 1060 | 1400 | 1450 | |
Remarks:
- Cold water from 12 ° C to 7 ° C, outside temperature 35 ° C;
- Sound level measured at 1 m from the location of the unit according to ISO 3744;
- N.B. The weight of the SSL version is specified in the technical documentation

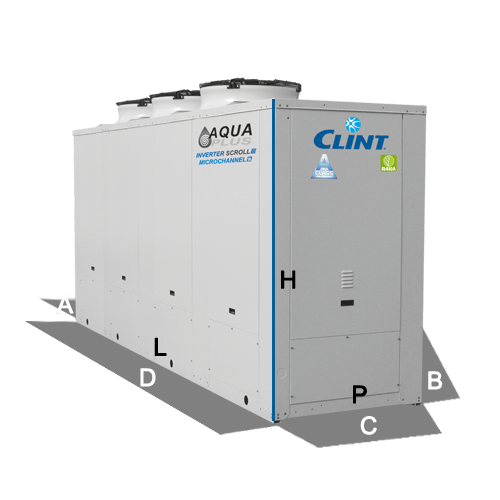

Dimensions
| CHA/IK/A | 172-P | 192-P | 212-P | 232-P | 272-P | 302-P | 352-P | 372-P | 484-P | 574-P | ||
| L | STD | mm | 2350 | 2350 | 2350 | 2350 | 2350 | 3550 | 3550 | 3550 | 4700 | 4700 |
| SSL | mm | 2350 | 2350 | 2350 | 3550 | 3550 | 3550 | 4700 | 4700 | |||
| P | STD | mm | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
| H | STD | mm | 1920 | 2220 | 2220 | 2220 | 2220 | 1920 | 2220 | 2220 | 2220 | 2220 |
| SSL | mm | 1920 | 2220 | 2220 | 1920 | 1920 | 2220 | 2220 | 2220 |
 |
CHA/IK/A 172-P ÷ 574-P | ||
| A | mm | 300 | |
| B | mm | 1800 | |
| C | mm | 800 | |
| D | mm | 800 | |
